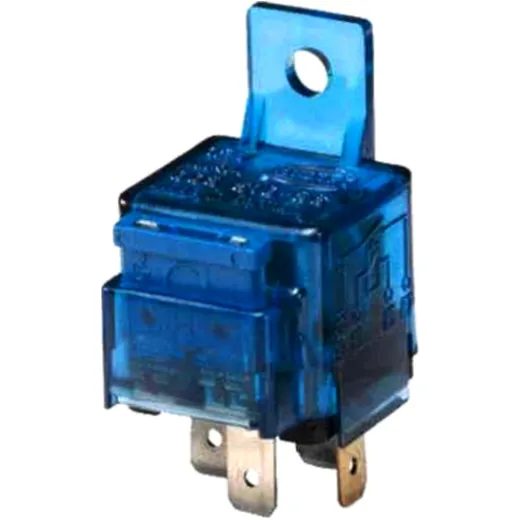

Mini relay 12v

HELLA Operating current relay 4-pole, 12 V

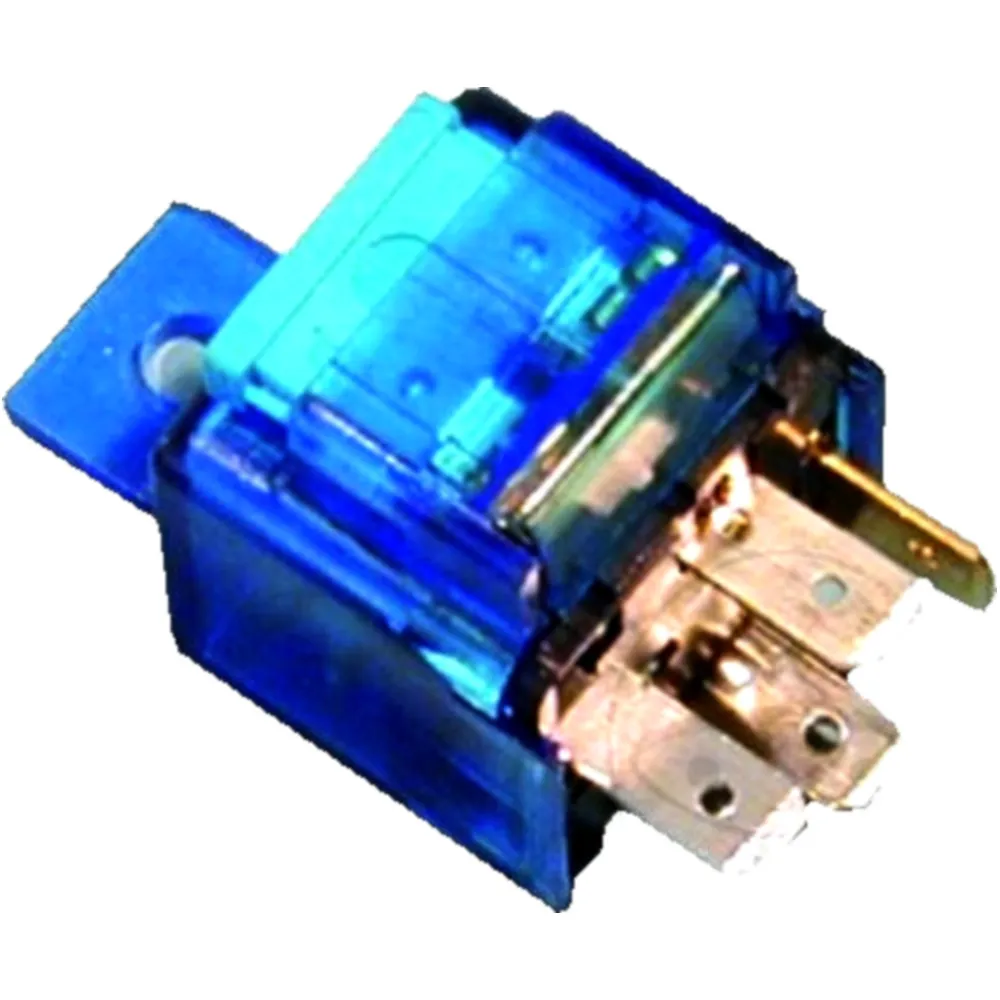

• Minirelais with holder, fuse safety insert 15A and flat plug connections 6.3 mm

• The circuit between the current source and an electrical load is closed via a normally open relay, ie the load is switched on

• Relays are operated via switches, pulse generators or control units

• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications

Connector design ID: A

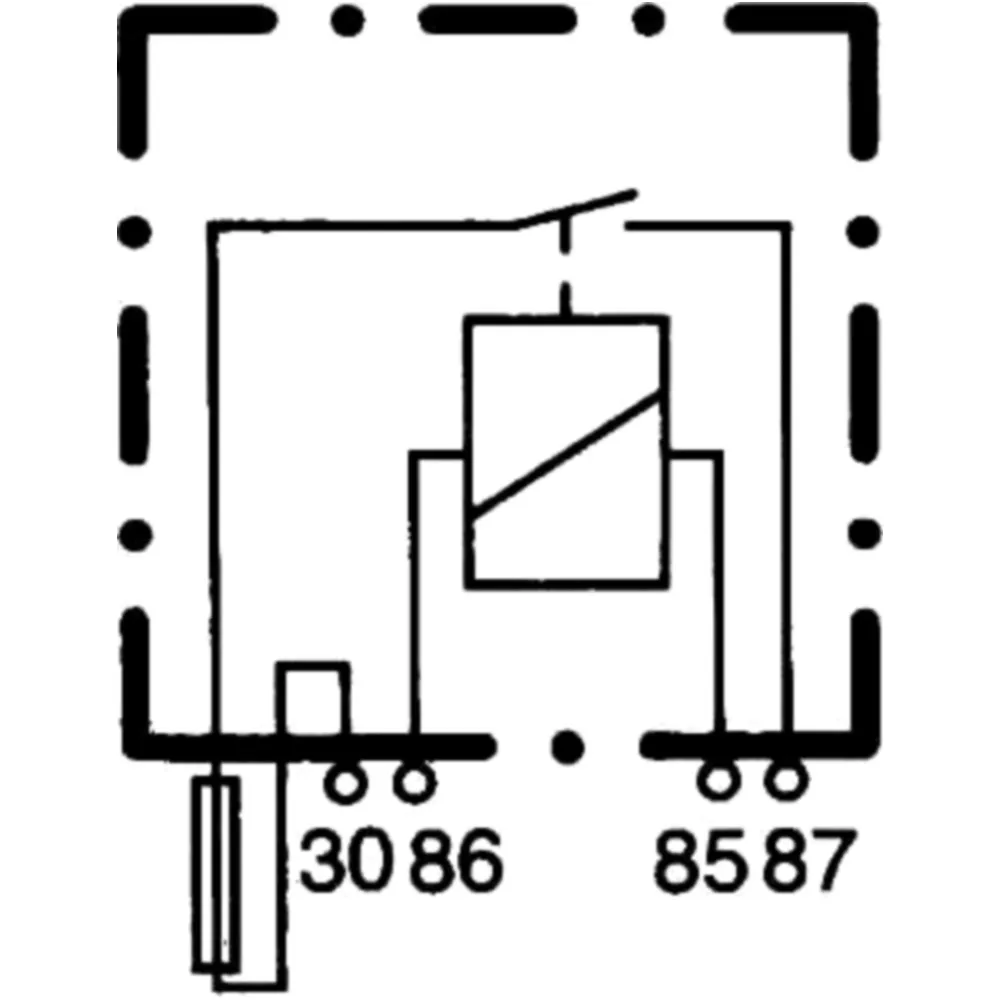

Wiring diagram: S10

Temperature range, max .: 80 ° C

Power handling (at +80 ° C) Closing contact

Ohmic load: 15 A

Manufacturer Nr.: Hella 4RA 003 530-001

EAN: 4082300281521
