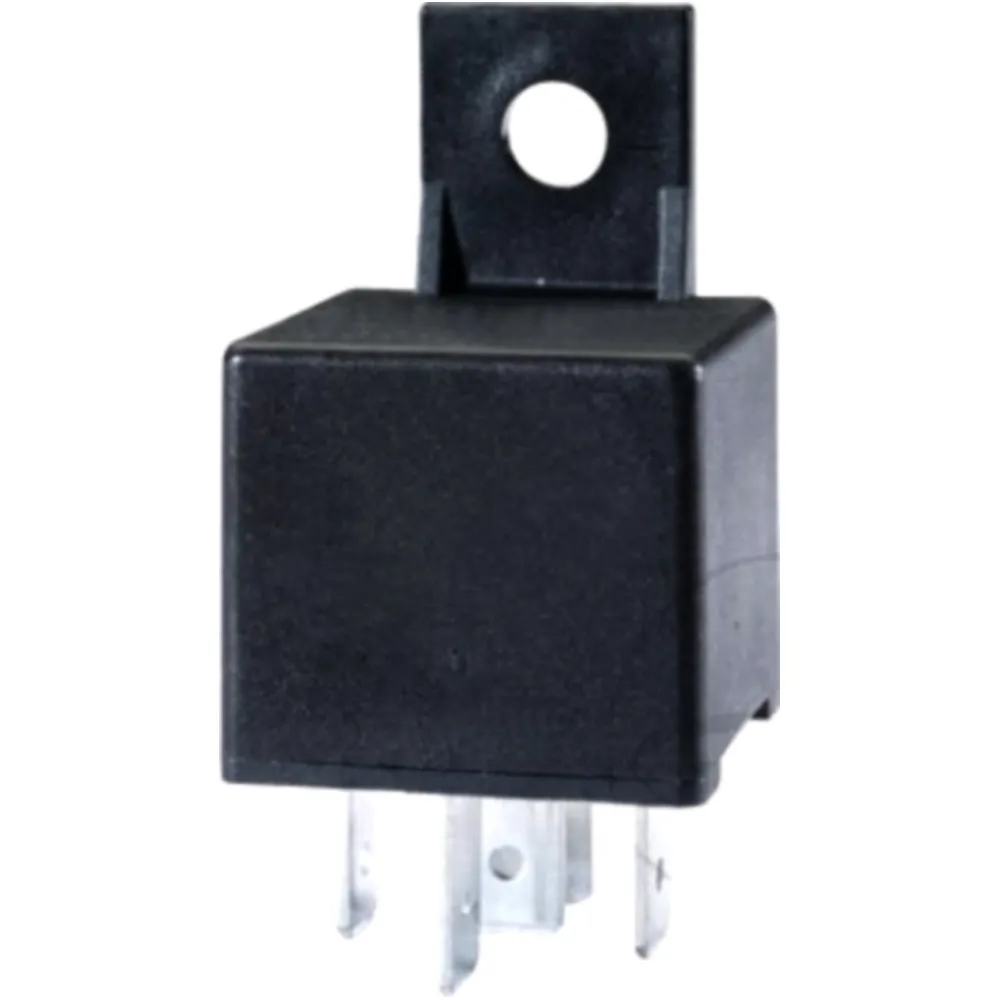

Relais WECHSLER 12V 40A 4RD933332391

CHANGE OVER RELAY 12V 40A 5 PIN WITH HOLDER 1080272

HELLA Operating current relay 5 poles, 12 V

• Minirelais with holder
• Closes the circuit between the power source and an electrical load
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications:

Inductive load: 15 A

Capacitive load: 5 A

Ohmic load: 40 A

Rated voltage: 12 V

Temperature range: -40 ° C

Temperature range up to: 125 ° C

Manufacturer Nr.: Hella 4RD 933 332-391

EAN: 4082300688467
