Schließerrelais 12V 40A

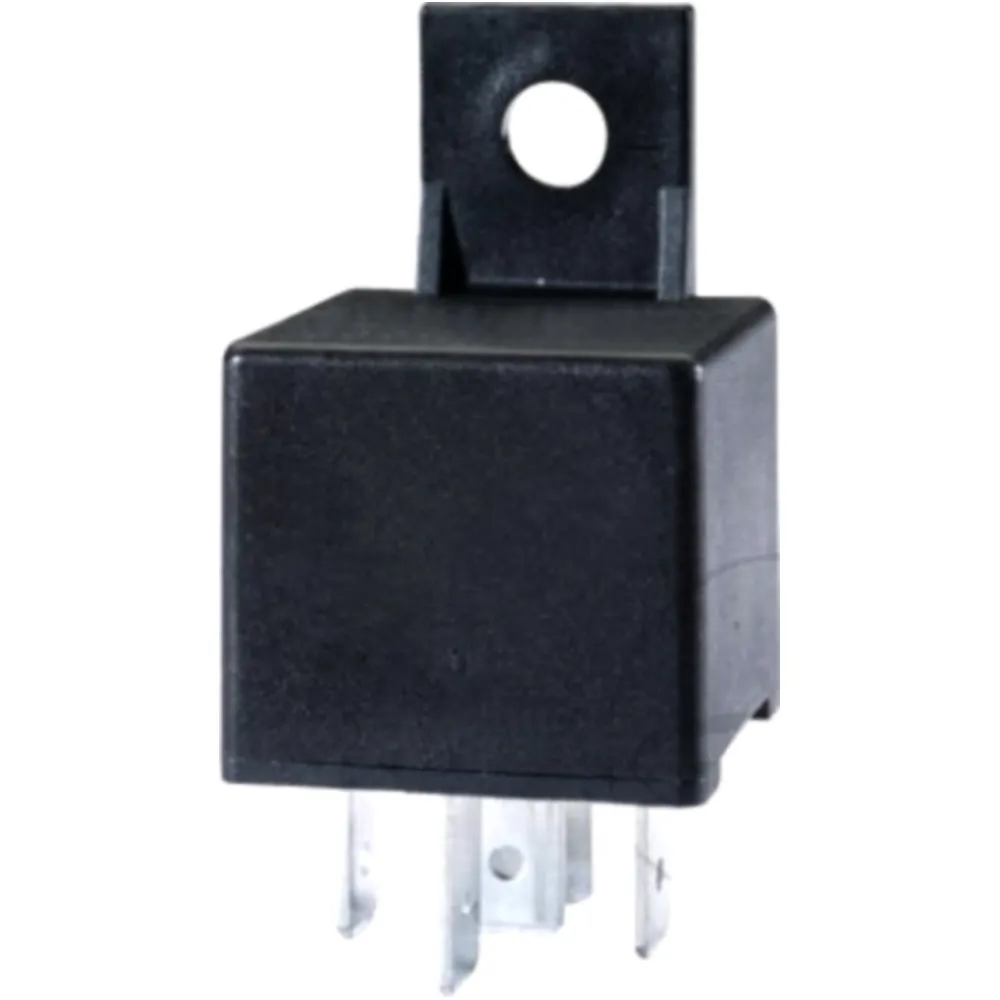

Closing Relay 12V 40A 5 Pin Incl Holder for Motorcycles

HELLA 5-pole normally open relay, 12 V

• Power miniature relay with holder and 2 connections 87
• Ideal for switching pairs of consumers, eg auxiliary lights
• With parallel resistor to the coil
• Closes the circuit between the power source and an electrical load
• Application: headlights, auxiliary lights, horns, heaters, fan motors and windows, air conditioning and ignition systems, etc.

Technical specifications:

Inductive load: 15 A

Capacitive load: 5 A

Rated current: 40 A

Ohmic load: 40 A

Rated voltage: 12V

Temperature range: -40 ° C to: 125 ° C

Plug Type ID: B2

Schematic: S6

Manufacturer Nr.: Hella 4RA 933 791-121

EAN: 4082300688382
