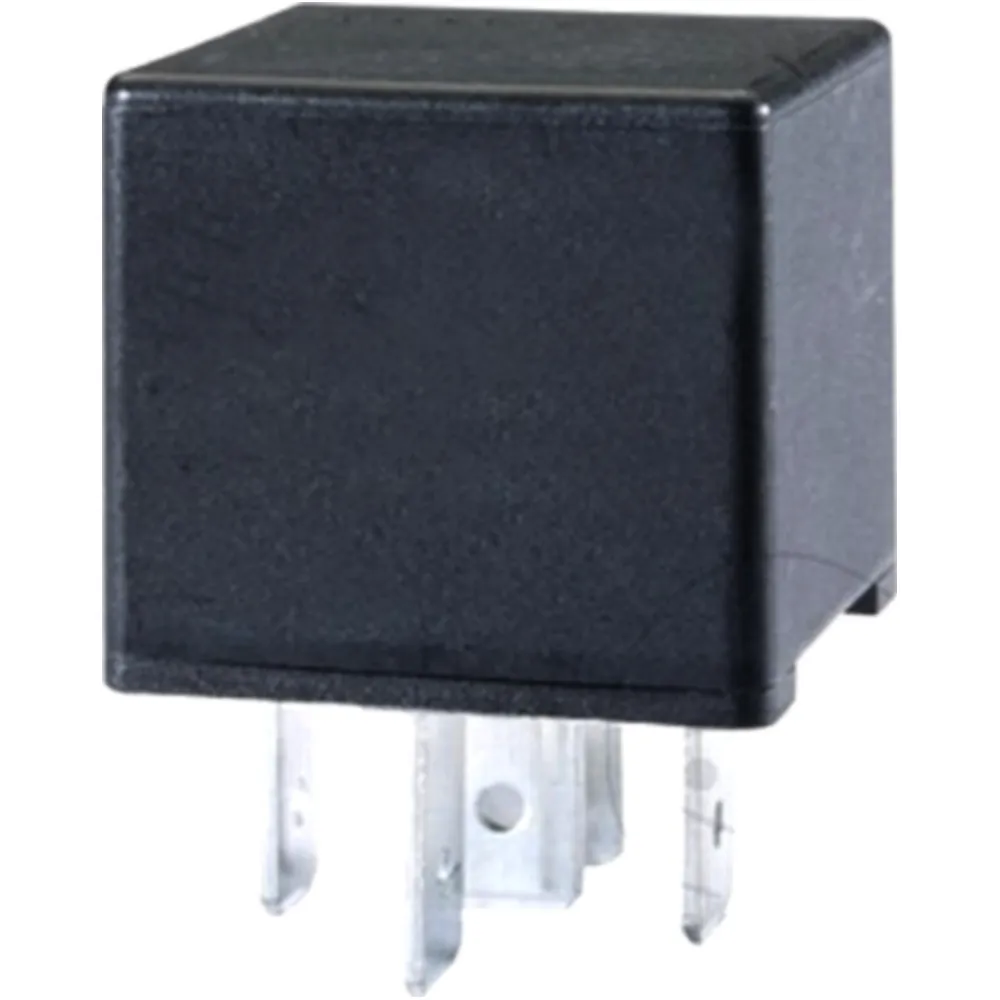

Schließerrelais 24V 20A 4RA933791141

Closing Relay 24V 20A 5-Pin Incl Holder

HELLA Operating current relay 5-pole, 24 V

• Power Minirelais with holder
• With parallel resistance to coil
• Closes the circuit between the power source and an electrical load
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications:

Inductive load: 5 A

Capacitive load: 5 A

Rated current: 20 A

Ohmic load: 30 A

Rated voltage: 24 V

Temperature range: -40 ° C

Temperature range up to: 125 ° C

Manufacturer Nr.: Hella 4RA 933 791-141

EAN: 4082300688412
