Working current relay diverse

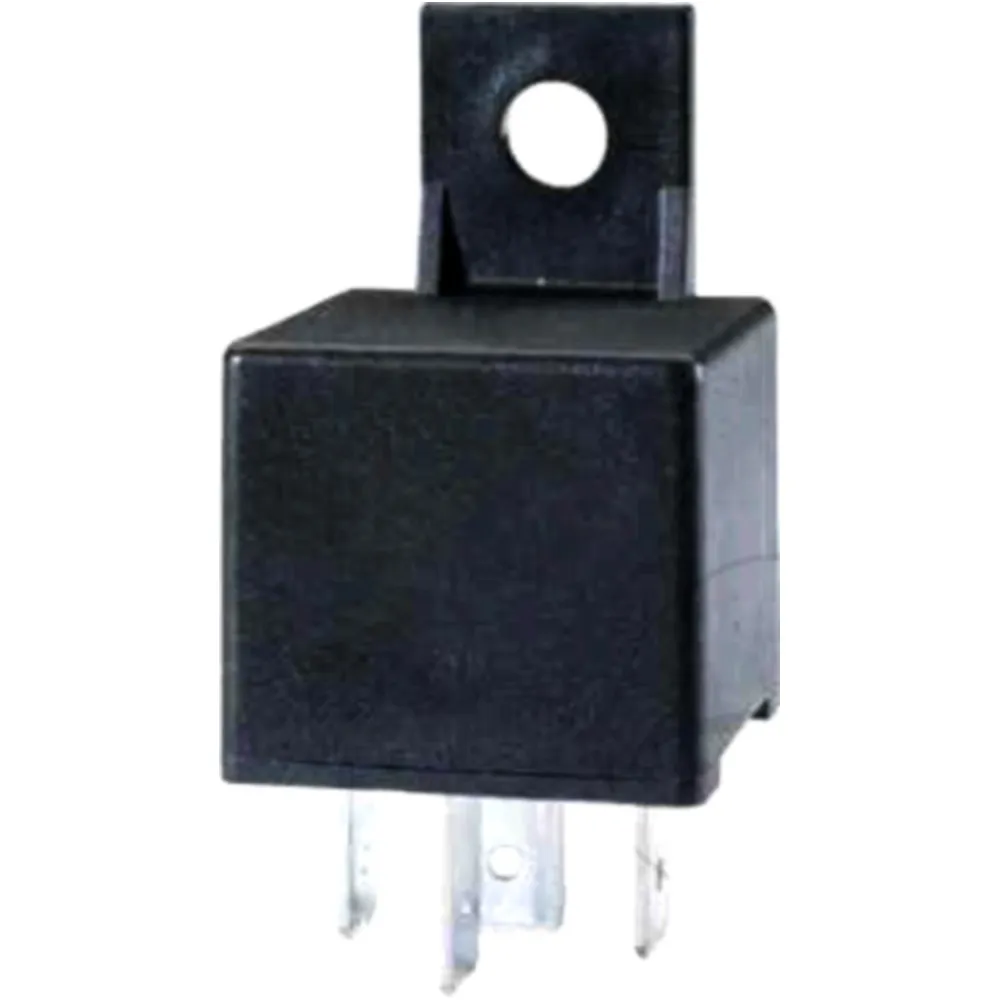

HELLA Operating current relay 4-pole, 12 V

• Power Minirelais with holder

• With parallel resistance to the coil and flat plug connections 6.3 mm

• Closes the circuit between the power source and an electrical load

• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications

Connector design ID: B

Wiring diagram: S2

Temperature range, max .: 80 ° C

Power handling (at +80 ° C) Closing contact

Ohmic load: 40 A

Inductive load: 35 A

Capacitive load: 30 A

Manufacturer Nr.: Hella 4RA 007 791-021

EAN: 4082300078664
