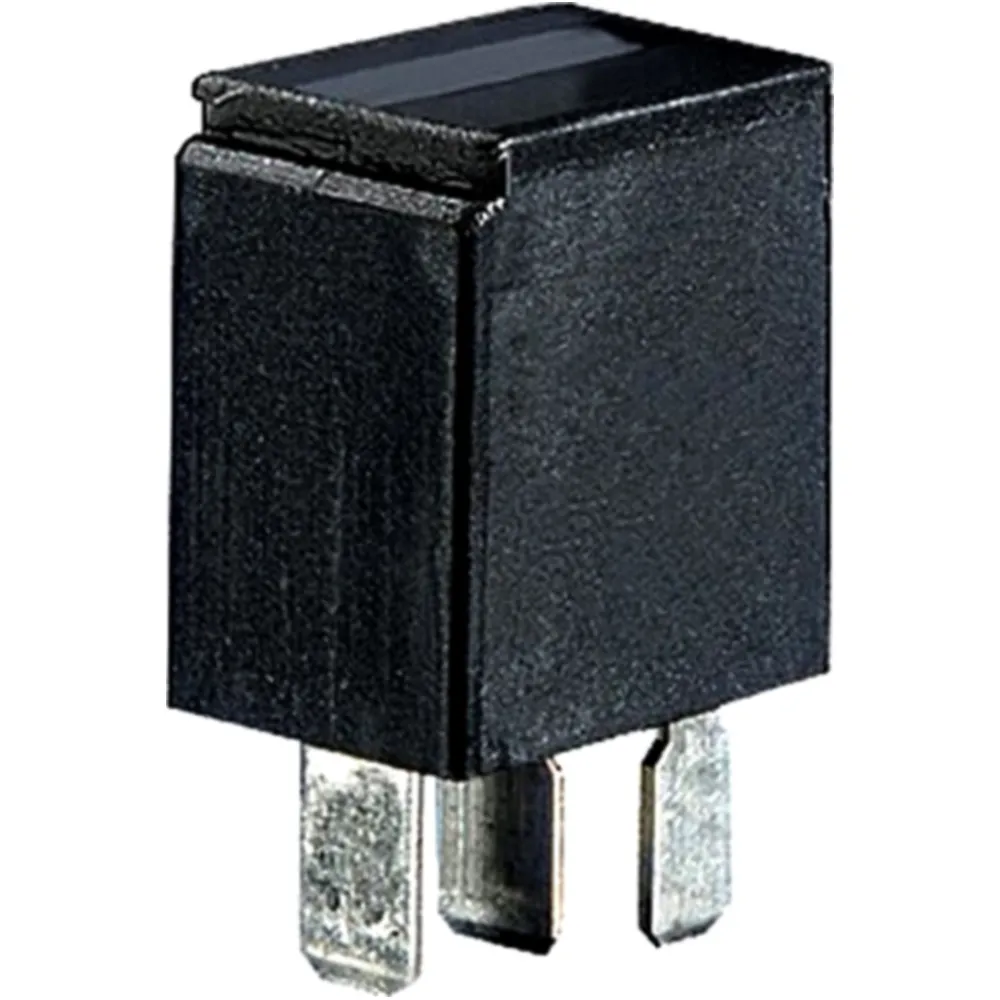

Working current relay diverse 4RA933766111

12V 4-Pole Working Current Relay for Motorcycles

HELLA Operating current relay 4-pole, 12 V

• Microrelais without holder
• With parallel resistance to coil
• The circuit between the current source and an electrical load is closed via a normally open relay, ie the load is switched on
• Relays are operated via switches, pulse generators or control units
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications: Connection type: 2 flat plug connections 4.8 mm and 2 flat plug connections 6.3 mm (terminals 3 and 5)

Connector design ID: C

Wiring diagram: S2

Protection class: IP5K4

Temperature range: -40 to + 125 ° C

Load capacity (at +80 ° C), NC contact / NO contact

Ohmic load: - / 20 A

Inductive load: - / 20 A

Capacitive load: - / 20 A

Manufacturer Nr.: Hella 4RA 933 766-111

EAN: 4082300576108
