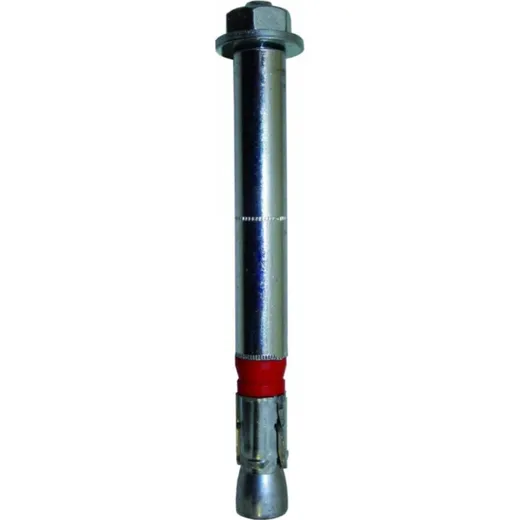

Wall plug b 15/45sz ab15/65

Dowel 15/45 SZ-B

The ETA, Option 1 approved heavy duty anchor SZ is a high performance push-through anchor system

with triple expanding special sleeve, which allows very high admissible loads with small

permissible loads with small axial and edge distances.

The plastic compression ring ensures permanent clamping of the fastening part against the substrate.

Advantages

- very high tensile and lateral loads

Application examples

Medium to heavy anchorages in cracked and non-cracked concrete,

e.g. steel supports, railings, machines, scaffolding, brackets.

Drill diameter mm: 15

Dowel length over all mm: 141

Thread: M10

Drill hole depth mm: 120

necessary anchorage depth in concrete mm: 85

max. clamping thickness of component mm: < 40

Tightening torque dowel Nm: 50

Manufacturer Nr.: INTERN SZ-B 15/45

EAN: 4043315041364
