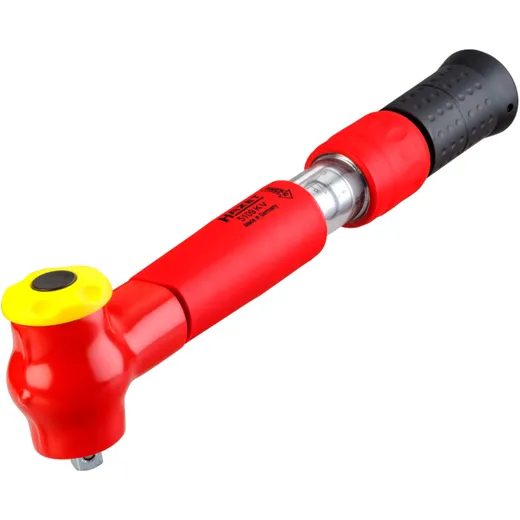

Insulated Torque Wrench 3/8 inch, 5-25 Nm, for Electric Vehicles

Insulated Torque Wrench 3/8 inch, 5-25 Nm, for Electric Vehicles

Hazet torque wrench, insulated 3/8 inch, 5-25 Nm

For work on hybrid & electric vehicles (high-voltage vehicles)

• Tightening torque min/max 5-25 Nm
• Tolerance 4%
• Square 3/8 inch
• Standard: DIN 3120, DIN EN ISO 6789-2:2017, IEC 60900:2018, ISO 1174-1
• Right/left release by reversible square,
  thus tightening with set torque both to the right and to the left within the specified tolerance
• Low weight for easy handling and fatigue-free working
• Slim design in strict compliance with the required insulation factors (material thickness / overlaps)
• Made in Germany
• Length 305 mm
• VDE protective insulation up to 1000V
• Scale graduation 0.5 Nm
• Actuating force min. - max. kg: 2.1 - 11.0 kg
• Number of teeth: 24 (operating angle 15°)
• No more turning back: long-term endurance tests have shown that HAZET torque wrenches in the 5000 and 6000 series do not need to be turned back to the smallest scale value

Manufacturer Nr.: Hazet 5109KV

EAN: 4000896235445
