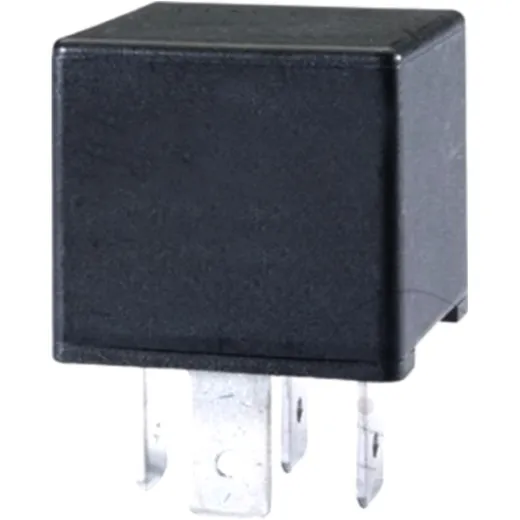

Closing Relay 12V 40A 4 Pin for Motorcycles

Closing Relay 12V 40A 4 Pin for Motorcycles

HELLA Operating current relay 4-pole, 12 V

• Power Minirelais
• With parallel resistance to coil
• Closes the circuit between the power source and an electrical load
• Application: Main headlights, auxiliary headlights, horns, heaters, fan motors and window lifters, air-conditioning and ignition systems, etc.

Technical specifications:

Weight: 24 g

Inductive load: 15 A

Capacitive load: 5 A

Rated current: 40 A

Ohmic load: 40 A

Rated voltage: 12 V

Temperature range: -40 ° C

Temperature range up to: 125 ° C

Manufacturer Nr.: Hella 4RA 933 332-451

EAN: 4082300688429
